Specialized Roubaix SL8 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

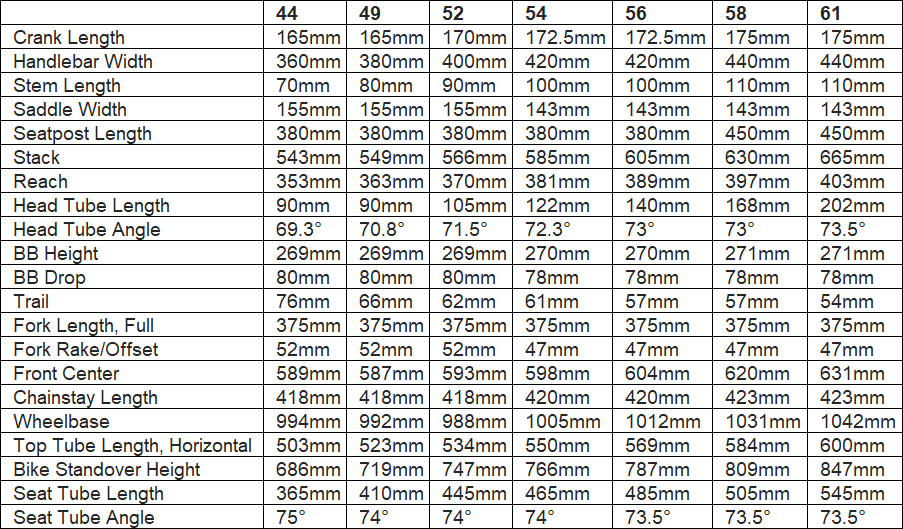

Specialized Roubaix SL8 2026 geometry chart

Source: Manufacturer geometry source

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
44 543 mm published353 mm published69.3 ° derived75.0 ° derived503 mm derived418 mm derived994 mm published589 mm published80 mm derived76.0 mm published52 mm published green
All 5 consistency checks passed
49 549 mm published363 mm published70.8 ° derived74.0 ° derived523 mm derived418 mm derived992 mm published587 mm published80 mm derived66.0 mm published52 mm published green
All 5 consistency checks passed
52 566 mm published370 mm published71.5 ° derived74.0 ° derived534 mm derived418 mm derived988 mm published593 mm published80 mm derived62.0 mm published52 mm published yellow
1 of 5 checks flagged — Trail Reconciliation shows 2.1mm discrepancy
54 585 mm published381 mm published72.3 ° derived74.0 ° derived550 mm derived420 mm derived1005 mm published598 mm published78 mm derived61.0 mm published47 mm published yellow
1 of 5 checks flagged — Stack Reconciliation shows 2.1mm discrepancy
56 605 mm published389 mm published73.0 ° derived73.5 ° derived569 mm derived420 mm derived1012 mm published604 mm published78 mm derived57.0 mm published47 mm published yellow
1 of 5 checks flagged — Stack Reconciliation shows 2.3mm discrepancy
58 630 mm published397 mm published73.0 ° derived73.5 ° derived584 mm derived423 mm derived1031 mm published620 mm published78 mm derived57.0 mm published47 mm published green
All 5 consistency checks passed
61 665 mm published403 mm published73.5 ° derived73.5 ° derived600 mm derived423 mm derived1042 mm published631 mm published78 mm derived54.0 mm published47 mm published green
All 5 consistency checks passed

Audit context

Overall consistency: yellow. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

Geometry reconciliation applies a 48mm Future Shock steerer extension correction to both stack and reach before comparison against the engine's forward-model calculations. The Specialized Roubaix SL8 specification shows strong overall consistency with the RideDNA forward-model geometry. Stack shows 2.1–2.3mm data inaccuracies in the published values on sizes 54 and 56; all other sizes reconcile within ±1mm engineering tolerance. Reach, wheelbase, and front center reconcile within ±1mm engineering tolerance across all seven sizes. Trail shows a 2.1mm data inaccuracy in the published value on size 52; all other sizes reconcile within ±1mm engineering tolerance.
