Specialized Diverge 4 2026 complete geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

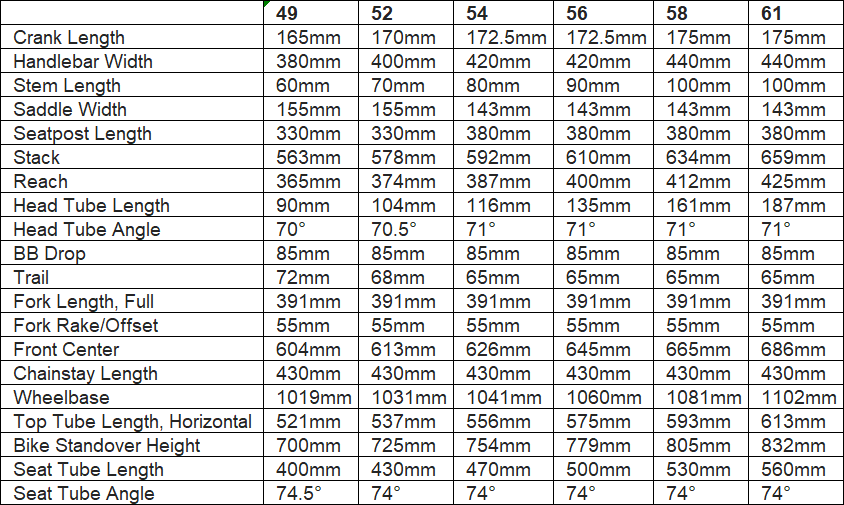

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

Size	Stack	Reach	HTA	STA	ETT	Chainstay	Wheelbase	Front center	BB drop	Trail	Fork offset	Audit context
49	563 mm published	365 mm published	70.0 ° derived	74.5 ° derived	521 mm derived	430 mm derived	1019 mm published	604 mm published	85 mm derived	72.0 mm published	55 mm derived	yellow
3 of 5 checks flagged — Reach Reconciliation shows 4.1mm discrepancy
52	578 mm published	374 mm published	70.5 ° derived	74.0 ° derived	537 mm derived	430 mm derived	1031 mm published	613 mm published	85 mm derived	68.0 mm published	55 mm manual	red
3 of 5 checks flagged — Reach Reconciliation shows 5.9mm discrepancy
54	592 mm published	387 mm published	71.0 ° derived	74.0 ° derived	556 mm derived	430 mm derived	1041 mm published	626 mm published	85 mm derived	65.0 mm published	55 mm derived	yellow
3 of 5 checks flagged — Reach Reconciliation shows 3.3mm discrepancy
56	610 mm published	400 mm published	71.0 ° derived	74.0 ° derived	575 mm derived	430 mm derived	1060 mm published	645 mm published	85 mm derived	65.0 mm published	55 mm derived	yellow
3 of 5 checks flagged — Reach Reconciliation shows 2.4mm discrepancy
58	634 mm published	412 mm published	71.0 ° derived	74.0 ° derived	593 mm derived	430 mm derived	1081 mm published	665 mm published	85 mm derived	65.0 mm published	55 mm derived	yellow
3 of 5 checks flagged — Reach Reconciliation shows 3.5mm discrepancy
61	659 mm published	425 mm published	71.0 ° derived	74.0 ° derived	613 mm derived	430 mm derived	1102 mm published	686 mm published	85 mm derived	65.0 mm published	55 mm derived	yellow
3 of 5 checks flagged — Reach Reconciliation shows 3.5mm discrepancy

Audit context

Overall consistency: red. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

Geometry reconciliation applies a 48mm Future Shock steerer extension correction to both stack and reach before comparison against the engine's forward-model calculations. Stack reconciles within ±1mm engineering tolerance across all six sizes. Reach shows a 5.9mm data inaccuracy on size 52, with sizes 49, 54, 56, 58, and 61 showing 2.4–4.1mm data inaccuracies. Wheelbase and front center exhibit parallel discrepancies: size 52 shows 8.3mm and 5.8mm data inaccuracies respectively, while sizes 49, 54, 56, 58, and 61 show 2.1–4.5mm data inaccuracies. Trail reconciles within ±1mm engineering tolerance across all sizes.
