Specialized Tarmac SL9 2026 geometry

A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.

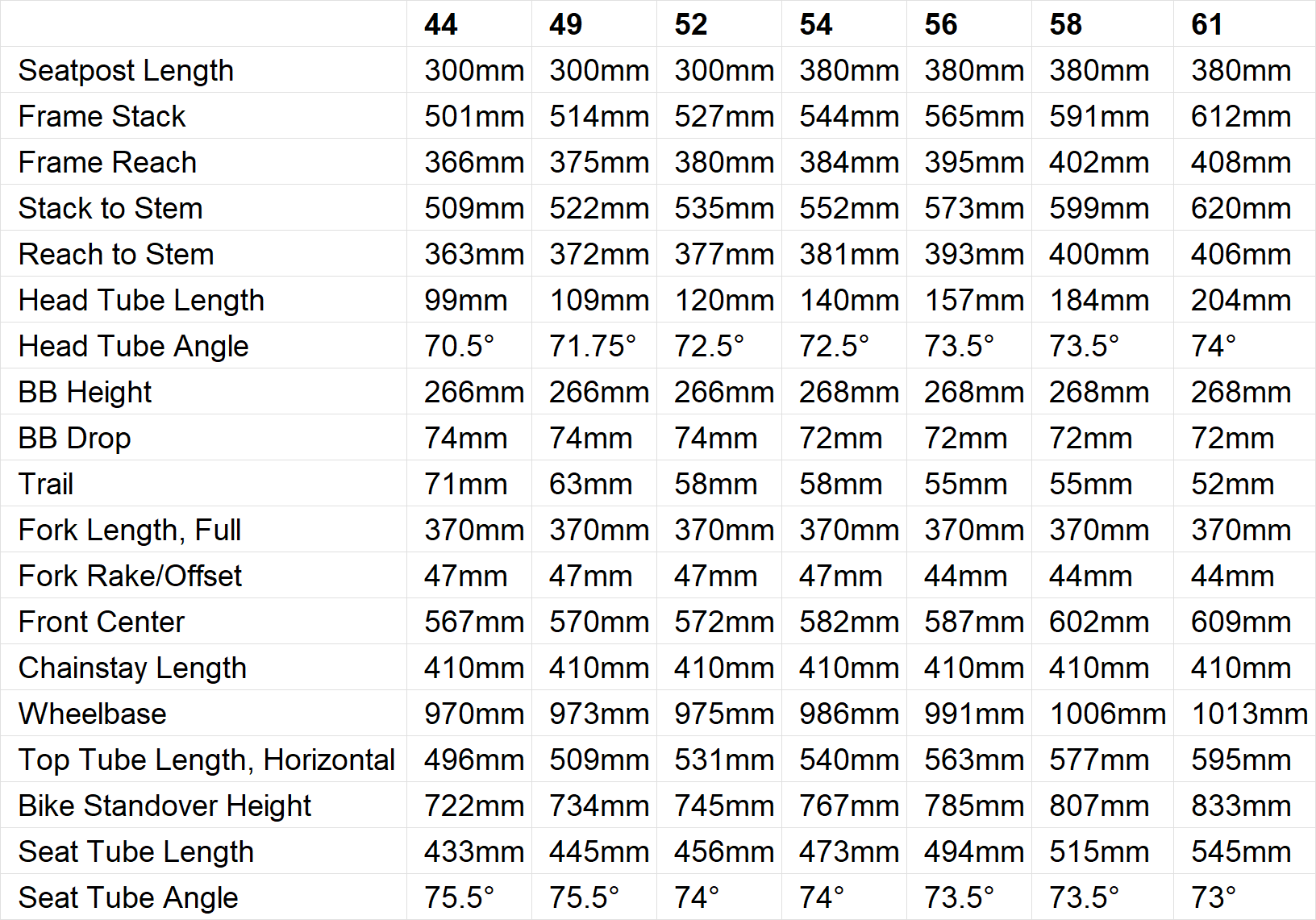

Specialized Tarmac SL9 2026 geometry chart

Source: Manufacturer geometry source

This profile is available for riders, but it is not currently indexed because its published geometry is not fully independently verified. Values marked derived are calculated by RideDNA; values marked published are transcribed from the manufacturer chart.

Published geometry by size

Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

SizeStackReachHTASTAETTChainstayWheelbaseFront centerBB dropTrailFork offsetAudit context
44 501 mm published366 mm published70.5 ° derived75.5 ° derived496 mm derived410 mm derived970 mm published567 mm published74 mm derived71.0 mm published47 mm published red
1 of 5 checks flagged — Front Center Reconciliation shows 5.2mm discrepancy
49 514 mm published375 mm published71.8 ° derived75.5 ° derived509 mm derived410 mm derived973 mm published570 mm published74 mm derived63.0 mm published47 mm published red
1 of 5 checks flagged — Front Center Reconciliation shows 5.4mm discrepancy
52 527 mm published380 mm published72.5 ° derived74.0 ° derived531 mm derived410 mm derived975 mm published572 mm published74 mm derived58.0 mm published47 mm published yellow
1 of 5 checks flagged — Front Center Reconciliation shows 4.8mm discrepancy
54 544 mm published384 mm published72.5 ° derived74.0 ° derived540 mm derived410 mm derived986 mm published582 mm published72 mm derived58.0 mm published47 mm published yellow
1 of 5 checks flagged — Front Center Reconciliation shows 4.6mm discrepancy
56 565 mm published395 mm published73.5 ° derived73.5 ° derived563 mm derived410 mm derived991 mm published587 mm published72 mm derived55.0 mm published44 mm published yellow
1 of 5 checks flagged — Front Center Reconciliation shows 5mm discrepancy
58 591 mm published402 mm published73.5 ° derived73.5 ° derived577 mm derived410 mm derived1006 mm published602 mm published72 mm derived55.0 mm published44 mm published yellow
1 of 5 checks flagged — Front Center Reconciliation shows 3.9mm discrepancy
61 612 mm published408 mm published74.0 ° derived73.0 ° derived595 mm derived410 mm derived1013 mm published609 mm published72 mm derived52.0 mm published44 mm published yellow
1 of 5 checks flagged — Front Center Reconciliation shows 3.8mm discrepancy

Audit context

Overall consistency: red. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.

The Specialized Tarmac SL9 geometry specification shows strong reconciliation for stack, reach, and wheelbase across all seven sizes (within ±1mm engineering tolerance). Front center exhibits systematic discrepancies ranging from 3.8mm to 5.4mm across all sizes, with the two smallest sizes (44, 49) exceeding the 5mm threshold. The RideDNA Geometry Engine reconciliation confirms this pattern: the published reach values are internally inconsistent with the published front center geometry at the manufacturer's stated fork offsets, and the published wheelbase and front center values imply chainstay lengths 3.7–5.4mm longer than the 410mm specification.
