A size-by-size geometry profile with manufacturer provenance and RideDNA consistency-audit context. Use the complete table to compare fit and handling before opening the interactive tools.
Source: Manufacturer geometry source
Provenance: published is present in the manufacturer data; derived is calculated by RideDNA; manual is a staff-entered reference rather than a manufacturer-chart value. “Not published” means the manufacturer did not provide a value for that size.

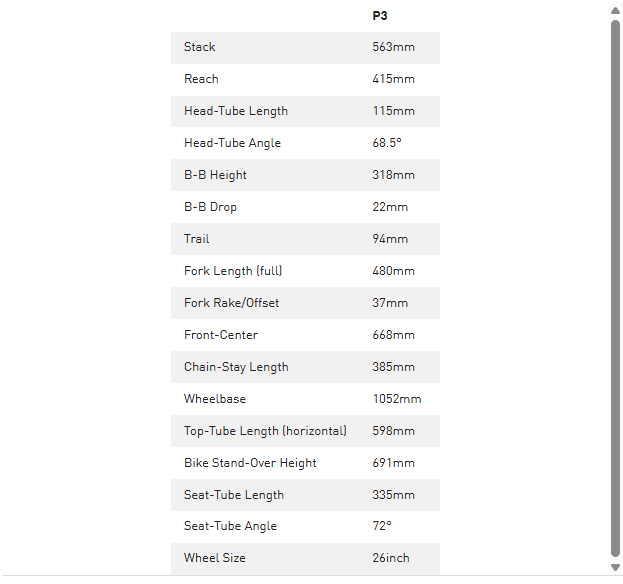

| Size | Stack | Reach | HTA | STA | ETT | Chainstay | Wheelbase | Front center | BB drop | Trail | Fork offset | Audit context |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P3 | 563 mm published | 415 mm published | 68.5 ° derived | 72.0 ° derived | 598 mm derived | 385 mm derived | 1052 mm published | 668 mm published | 22 mm derived | 94.0 mm published | 37 mm published | yellow |
| 1 of 5 checks flagged — Trail Reconciliation shows 2.7mm discrepancy | ||||||||||||
Overall consistency: yellow. This context is shown alongside the table so a rider can distinguish a complete published specification from a value that RideDNA had to derive or could not independently verify.
The Specialized P3 dirt jump bike shows strong overall geometric consistency, with stack, reach, wheelbase, and front center all reconciling within ±1mm engineering tolerance. A 2.7mm data inaccuracy exists in the published trail value. The manufacturer has published a complete geometry specification including fork axle-to-crown length, enabling full independent geometric verification across all checks.
